How to remove a Mazda MX5 car stereo - (2005 Onwards)

The following is a guide on removing a car stereo or car radio from the above vehicle.

Tools and equipment required to complete the job

  • Screwdriver Set
  • Trim Removal Tools
  • Torx Scewdrivers

Original Stereo Image for this Vehicle:

How to remove the stereo step by step:

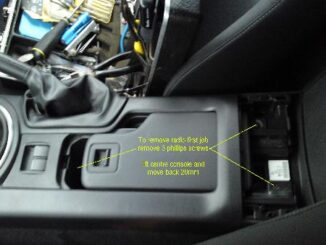

First remove 3 Philips screws in centre console then lift an move back 20mm.

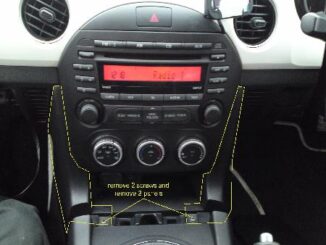

Remove 2 move screws then pull off the 2 plastic panels outlined in yellow in the picture.

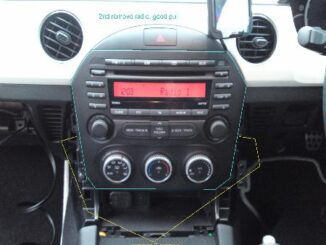

Then remove 2 screw shown by the yellow lines in the picture, then with a good pull the radio will come out.

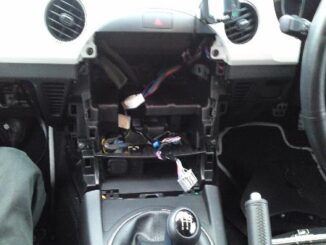

This picture shows the radio removed and the Mazda plug.

Remove radio and disconnect aerial and ISO wiring plugs from back.
