How to remove a Toyota Corolla MK3 car stereo - (2002 to 2007)

The following is a guide on removing a car stereo or car radio from the above vehicle.

Tools and equipment required to complete the job

  • Screwdriver Set
  • Trim Removal Tools
  • Socket Set

Original Stereo Image for this Vehicle:

h1

How to remove the stereo step by step:

h2

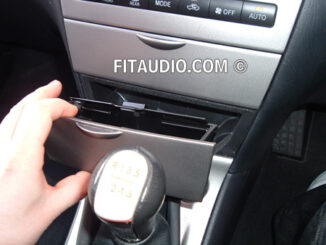

Start by removing the ashtray from its holder.

2
h3

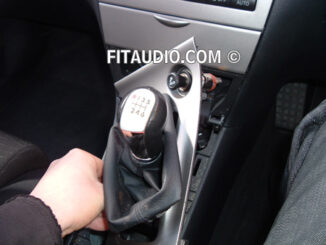

Next un-clip the gear stick surround trim off. (You may need to unscrew the gear knob and remove that first!)

3
h4

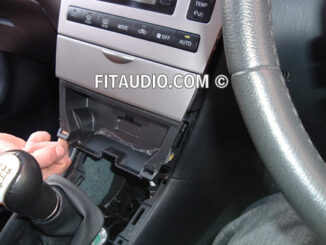

Now lift what’s left at the bottom of the dashboard as this is on pressure clips and should juts lift off.

4
h5

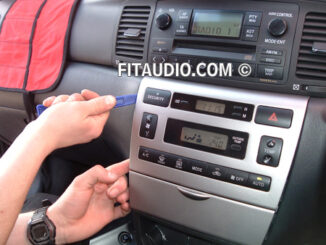

Work your prising tool upwards until the whole centre console is free.

5
h6

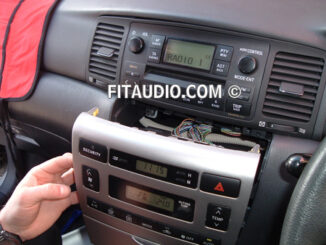

This is all one piece.

h7

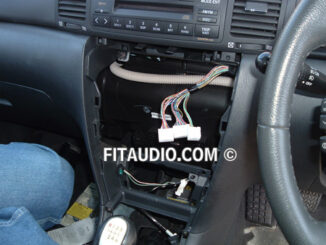

Disconnect any wiring looms and plugs from the centre console.

7
h8

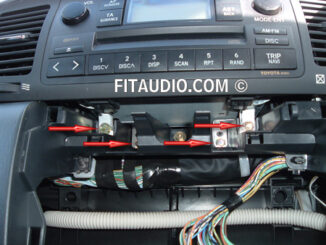

Locate the 4 bolts holding the stereo in place (arrows). Undo these.

8
h9

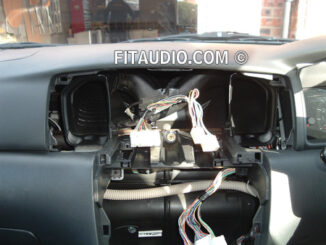

Remove radio and disconnect aerial and ISO wiring plugs from back.

9
h10
