How to remove a VW Transporter car stereo - (2005 Onwards)
The following is a guide on removing a car stereo or car radio from the above vehicle.
Note
Vehicle specifications may change depending on the year of manufacture.
This guide has been created for educational purposes only, and all images are copyright of Fitaudio.com
Tools and equipment required to complete the job
- Screwdriver Set
- Trim Removal Tools
- Torx Screwdrivers
Original Stereo Image for this Vehicle:
How to remove the stereo step by step:
Insert plastic trim tool in front edge of tray above radio nearest to windscreen. This tray then lifts out front first.
Remove the 2 x T 20 torx screw in top of radio, the panel around the radio and heater vents can then be removed using the trim tool again

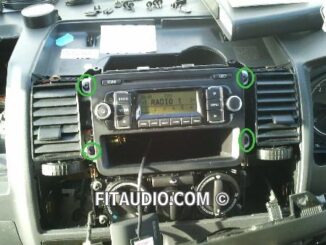

The 4 x T20 screws circles in green in the picture can now be seen and removed allowing radio to be removed. The radio uses a quadlock connector, not an iso type, so an adaptor will be needed.
There is no ignition live at the quadlock, an ignition live can be found on the back of the fan heater switch or from the fuse box.
Remove radio and disconnect aerial and ISO wiring plugs from back.
