How to remove a Ford Fiesta car stereo - (2009 Onwards)
The following is a guide on removing a car stereo or car radio from the above vehicle.
Note
Vehicle specifications may change depending on the year of manufacture.
This guide has been created for educational purposes only, and all images are copyright of Fitaudio.com
Tools and equipment required to complete the job
- Screwdriver Set
- Trim Removal Tools
- Torx Screwdrivers
Original Stereo Image for this Vehicle:
How to remove the stereo step by step:

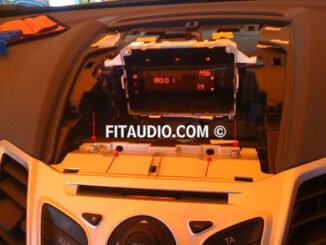

Start by removing the top trim panel as indicated by the arrows above using the trim removal tool. This is on pressure clips and should just pop off.

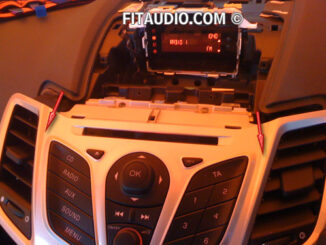

Next we found it easier to remove the heating control (white) so you will need an 8mm socket / spanner to remove the 2 nuts and a torx screwdriver to remove the screws (indicated by arrows)
The stereo is now only held in by some very stiff clips on each side of the air vent, once these are undone, the stereo should pull forward and release.
Remove radio and disconnect aerial and ISO wiring plugs from back.
