How to remove a Ford Mondeo car stereo - (2011 Onwards)

The following is a guide on removing a car stereo or car radio from the above vehicle.

Tools and equipment required to complete the job

  • Screwdriver Set
  • Trim Removal Tools
  • Torx Screwdrivers

Original Stereo Image for this Vehicle:

How to remove the stereo step by step:

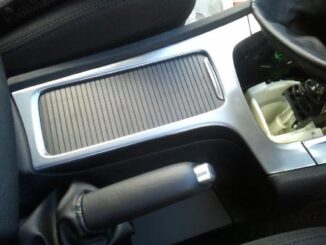

Pull off the gear lever gaiter and pull off the silver trim at the side of the handbrake.

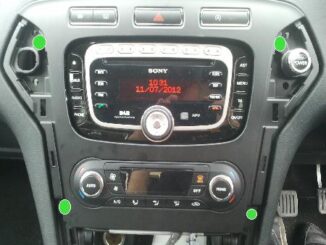

The 2 silver trim either side of the radio can now be removed. and the 4 screws holding the black panel in place shown by green circles in the picture

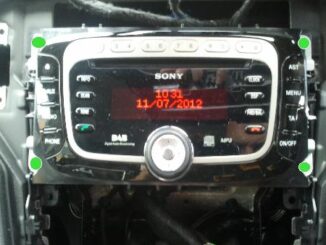

Then remove the 4 torx screws shown in the picture in green circles, the radio can then be removed, the radio has a quadlock plug so if fitting a radio with an iso plug an adaptor will be needed, also there is no ignition live at the quadlock plug.

Remove radio and disconnect aerial and ISO wiring plugs from back.
