How to remove a Honda Intergra Type R car stereo - (Most Models)

The following is a guide on removing a car stereo or car radio from the above vehicle.

Tools and equipment required to complete the job

  • Screwdriver Set
  • Trim Removal Tools

Original Stereo Image for this Vehicle:

How to remove the stereo step by step:

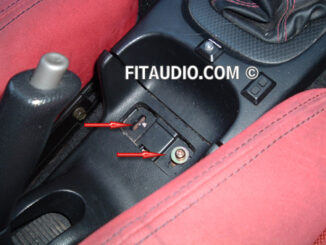

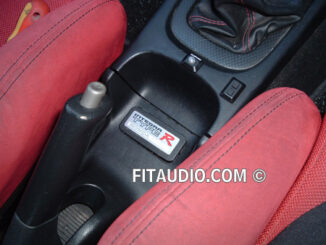

Remove the INTEGRA badge from the middle console near the handbrake.

Then remove the two screws.

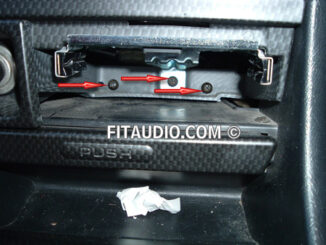

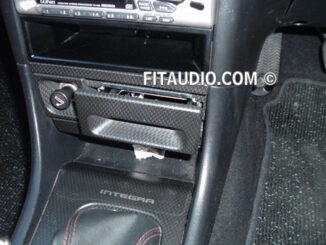

Next remove the ashtray which should allow access to THREE screws.

Undo them.

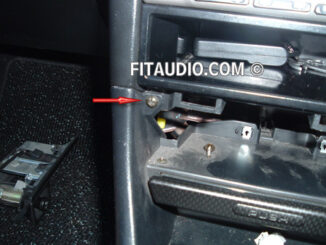

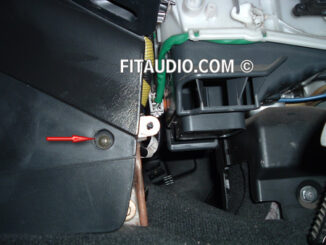

Now, on each side of the centre console in the footwell areas on both side you should be able to see a phillips head screw.
Undo these two screws, one from each footwell side.

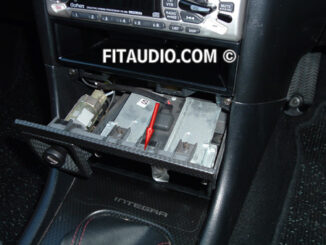

You can now remove the tray under the stereo.

Remove two screws, one from each side to allow the lower deck to drop, this should allow access to screws holding the stereo and tray/pocket in place, allowing you to easily remove the stereo.

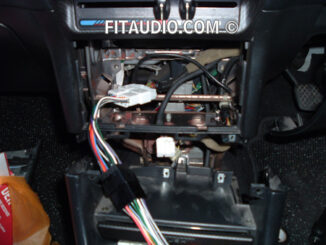

The stereo is now able to be removed.

Remove radio and disconnect aerial and ISO wiring plugs from back.
