How to remove a Toyota Yaris MK1 car stereo - (1999 to 2005)
The following is a guide on removing a car stereo or car radio from the above vehicle.
Note Vehicle specifications may change depending on the year of manufacture. This guide has been created for educational purposes only, and all images are copyright of Fitaudio.com
Original Stereo Image for this Vehicle:
How to remove the stereo step by step:

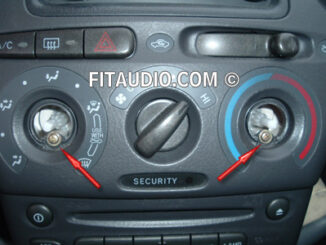

Start by removing the two outer heater control knobs, behind this is a screw. Undo them both.

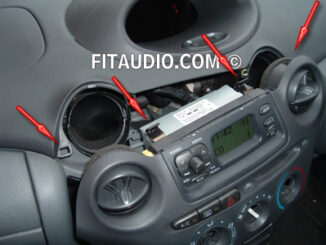

You will now be able to remove the top half of the dash to access the screws for the radio at the bottom. This top part of the dash is on clips so mild force will be required.

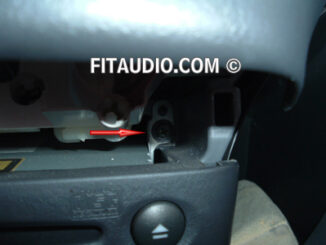

Underneath the top dash you just moved you should now see a screw on each side of the radio. You also need to remove the ashtray at this point at the bottom which will also reveal another two screws. Remove all four screws to allow the radio to be removed.

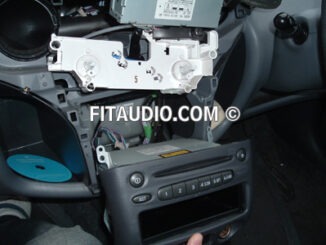

Remove radio and disconnect aerial and ISO wiring plugs from back.
